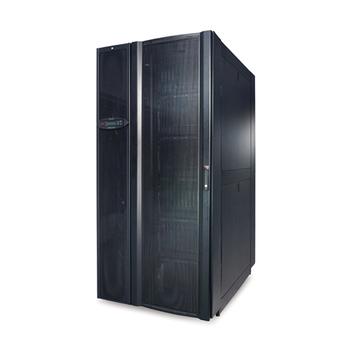

InRow Direct Expansion InRow SC System 1 InRow SC 50Hz 1PH, 1 NetShelter SX Rack 600mm, with Front and Rear Containment Close-coupled, air, water, and glycol cooling for closets, server rooms, and data centers Technical Specifications General Compressor Type: Rotary Air Discharge Patterns: Horizontal Intake Air: Rear Return Refrigerant Charge: 1.36 KG Air Flow: 566.34 lps Amp Draw In-Rush: 65A Condensate Pump Capacity: 0.002 lps Input Number of Power Cords: 1 Nominal Input Voltage: 200,208,220,230 Input Power: 2390 Watts Input Frequency: 50 Hz Rack Height: 42U Input Connections IEC 309 16A 2P+E Communications & Management Control panel: Multi-function LCD status and control console Physical Maximum Height: 1991.00 mm Maximum Width: 900.00 mm Maximum Depth: 1477.00 mm Net Weight: 374.23 KG Color: Black Environmental Audible noise at 1 meter from surface of unit: 70.00 dBA Conformance Standard Warranty:1 year (parts only) Features Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture. Reduces the risk of hot spots at the rack level Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided. Variable speed fans reduce energy consumption during off-peak cooling periods. Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures. Allows for higher cooling to be achieved by integrating the Hot Aisle Containment System with row-based architecture. Modular design provides scalable solutions to add cooling as demand increases. Allows for all serviceable components to be replaced/maintained by easily accessible panels/doors. Utilizes intelligent, active response control, and real-time monitoring. The system is controlled by a microprocessor providing high level control functionality and human interface via a four line, eighty character, alphanumeric display Send alarms and data points allowing you to manage critical building infrastructure from a single system. Real-time display of current and available cooling.
