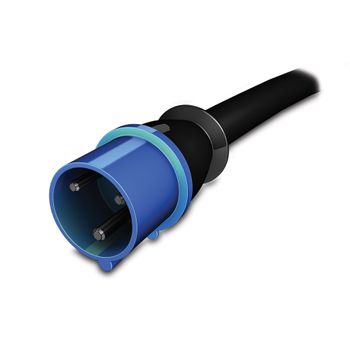

Rack PDU 2G, Metered, ZeroU, 32A, 230V, (36) C13 & (6) C19 APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. Output Nominal Output Voltage 230V Maximum Total Current Draw per Phase 32A Output Connections (36) IEC 320 C13 (6) IEC 320 C19 Overload Protection Yes Cord Length 3 meters Input Nominal Input Voltage 200V,208V,230V Input Frequency 50/60 Hz Input Connections IEC 309 32A 2P+E Cord Length 3 meters Number of Power Cords 1 Acceptable Input Voltage 220-240 VAC Maximum Line Current per phase 32A Maximum Input Current per phase 32A Physical Net Weight 6.93 KG Maximum Height 1791.00 mm Maximum Width 56.00 mm Maximum Depth 44.00 mm Shipping Weight 8.56 KG Shipping Height 2000.00 mm Shipping Width 162.00 mm Shipping Depth 107.00 mm Color Black Environmental Operating Environment -5 - 45 °C Operating Relative Humidity 5 - 95% Operating Elevation 0-3000 meters Storage Temperature -25 - 65 °C Storage Relative Humidity 5 - 95% Storage Elevation 0-15000 meters Conformance Regulatory Approvals IEC 60950,VDE Standard Warranty 2 years repair or replace Environmental Compliance RoHS,REACH: Contains No SVHCs,Contains Lithium Battery Features & Benefits Availability Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability) Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only) Agility Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
