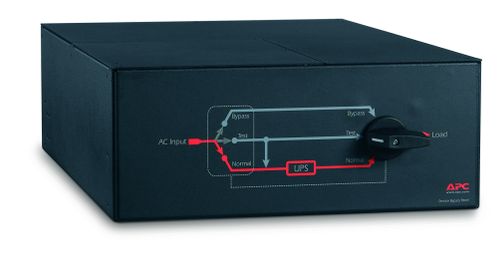

APC Maintenance Bypass Panels , Input: 230V , Input Connection Type: Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (3PH + G) , Output: 230V , Output Connections: Hard Wire 3-wire (H N + G) Includes: Installation Guide, Rack Mounting Brackets, User Manual Features: 19 inch Rack-Mountable Quick Transfer Rate Wrap Around System Bypass Technical Specifications Nominal output voltage 230V Maximum Total Current Draw per Phase 100 Output Connections (3) Hard Wire 3-wire (H N + G) Overload Protection Yes Nominal input voltage 230V Input frequency 50/60 Hz Input Connection Type Hard Wire 3 wire (1PH+N+G) Hard Wire 4-wire (3PH + G) Maximum Line Current per phase 100 A Maximum Input Current per phase 100 A Load Capacity 20,000 VA Load Power Factor Range 0 to 1 Net weight 48 lbs. ( 22 kg ) Maximum height 7 inches ( 18 cm ) Maximum width 17 inches ( 43 cm ) Maximum depth 26.50 inches ( 67.31 cm ) Shipping Weight 70 lbs. ( 32 kg ) Shipping Height 12 inches ( 30 cm ) Shipping Width 24 inches ( 61 cm ) Shipping Depth 39 inches ( 99 cm ) Color Black Operating Environment -20 - 45 °C ( -4 - 113 °F ) Operating Relative Humidity 0 - 95 % Operating Elevation 0-15000 feet ( 0-4500 meters ) Storage Temperature -40 - 65 °C ( -40 - 149 °F ) Storage Relative Humidity 0 - 95 % Storage Elevation 0-50000 feet ( 0-15000 meters ) Approvals CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 Standard warranty 2 years parts
