APC Smart UPS/1500VA USB 120V Shipboard
Forsiden
APC Smart UPS/1500VA USB 120V Shipboard
|
|
APC Smart UPS/1500VA USB 120V Shipboard
-
Kapasitet
1.44kVA
-
Produkt
Ekstern UPS
27 931,-
22 344,80 ekskl. mva
Hovedlager
Bestillingsvare
Butikk Sarpsborg
Bestillingsvare
Butikk Sørlandssenteret
Bestillingsvare
Butikk Kristiansand
Bestillingsvare
Leverandør
Bestillingsvare
|
Beskrivelse
Spesifikasjoner
Produktomtaler

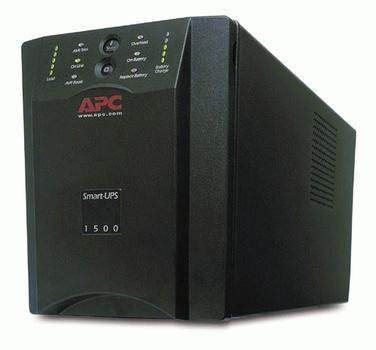

APC Smart-UPS 1500VA USB 120V SHIPBOARD
SUA1500X93
APC Smart-UPS, 1440VA/980W, Input 120V/Output 120V, Interface Port DB-9 RS-232, USB
Includes: Smart UPS signalling RS-232 cable, USB cable, User Manual
Features
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Cold-start capable
Provides temporary battery power when the utility power is out.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Network manageable
Monitor and control the UPS remotely via included PowerChute software or APC's Network Management Card (included in all models above 3kVA).
SmartSlot
Customize UPS capabilities with management cards.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Enables quick understanding and response to visual indicators showing UPS status.
Serial Connectivity
Provides management of the UPS via a serial port.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
InfraStruXure Manager compatible
Enables centralized management via APC's InfraStruXure Manager.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers
Enables quick recovery from UPS overload events.
Adjustable voltage-transfer points
Saves battery power and helps extend battery life.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Output
Output Power Capacity
980 Watts / 1440 VA
Max Configurable Power
980 Watts / 1440 VA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Input
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Cord Length
6 feet ( 1.83 meters)
Input voltage range for main operations
82 - 144V
Input voltage adjustable range for mains operation
75 - 154V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement battery cartridge
CURK7,
RBC7
Typical Backup Time
at Half Load
23.9 minutes (490 Watts)
Typical Backup Time
at Full Load
6.7 minutes (980 Watts)
Communications & Management
Interface Port(s)
DB-9 RS-232,USB
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
320 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
8.50 inches (216 mm)
Maximum Width
6.70 inches (170 mm)
Maximum depth
17.30 inches (439 mm)
Net Weight
53.00 lbs. ( 24.09 kg)
Shipping Weight
58.00 lbs. ( 26.36 kg)
Shipping Height
15.00 inches (381 mm)
Shipping Width
13.00 inches (330 mm)
Shipping Depth
23.00 inches (584 mm)
Environmental
Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit
45 dBA
Online Thermal Dissipation
135 BTU/hr
Regulatory Approvals
UL 1778
Standard Warranty
2 years repair or replace
Egenskaper |
|---|
| Output strømkapasitet (VA) | 1,44 kVA |
| Utgangseffekt | 980 W |
| Inngangsfrekvens | 60 Hz |
| Strømstøt energivurdering | 320 J |
| Nødstrøm av (EPO) | |
| Støynivå | 45 dB |
| Hørbare alarmer | |
Battery |
|---|
| Normal backuptid ved full belastning | 6,7 min |
| Normal backuptid ved halv belastning | 23,9 min |
| Utbyttbare batteripatroner | RBC7 |
Design |
|---|
| Produktfarge | Sort |
| Kabellengde | 1,83 m |
Miljømessige forhold |
|---|
| Driftstemperatur (T-T) | 0 - 40 °C |
| Oppbevaringstemperaturomåde (Celsius) | -15 - 45 °C |
| Relativ luftfuktighet under drift (H-H) | 0 - 95% |
| Lagringsrelativ fuktighet | 0 - 95% |
Tekniske detaljer |
|---|
| Harmonisert system (HS)-kode | 85078000 |
Vekt og dimensjoner |
|---|
| Vekt | 24,1 kg |
| Pakkevekt | 26,4 kg |
Andre funksjoner |
|---|
| Videoopptaksgrensesnitt | DB-9/RS-232 |
| Innput-forbindelsestype | NEMA 5-15P |
| Dimensjoner (B x D x H) | 170 x 439 x 216 mm |
| Nominell outputspenning | 120 V |
| Nominell innputspenning | 120 V |
| Pakningsstørrelse (BxDxH) | 330 x 584 x 381 mm |
