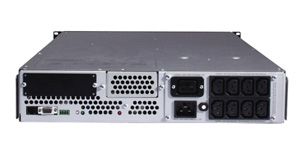

APC Smart-UPS 3000VA USB & Serial RM 2U 230V SUA3000RMI2U APC Smart-UPS, 3000VA/2700W, Input 230V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 2 U Includes: CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual Output Output Power Capacity 2700 Watts / 3000 VA Max Configurable Power 2700 Watts / 3000 VA Nominal Output Voltage 230V Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Output Voltage Distortion Less than 5% at full load Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal Crest Factor up to 5 : 1 Waveform Type Sine wave Output Connections (8) IEC 320 C13 (1) IEC 320 C19 (3) IEC Jumpers Input Nominal Input Voltage 230V Input Frequency 50/60 Hz +/- 3 Hz (auto sensing) Input Connections IEC-320 C20 Schuko CEE 7 / EU1-16P British BS1363A Input voltage range for main operations 160 - 286V Input voltage adjustable range for mains operation 151 - 302V Batteries & Runtime Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time 3 hour(s) Replacement battery cartridge RBC43 RBC™ Quantity 1 Typical Backup Timeat Half Load 11.3 minutes (1350 Watts) Typical Backup Timeat Full Load 3.0 minutes (2700 Watts) Runtime Chart Smart-UPS Communications & Management Interface Port(s) DB-9 RS-232,SmartSlot,USB Available SmartSlot™ Interface Quantity 1 Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO) Yes Surge Protection and Filtering Surge energy rating 480 Joules Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum Height 3.50 inches ( 89 mm) Maximum Width 19.00 inches (483 mm) Maximum depth 26.00 inches (660 mm) Rack Height 2U Net Weight 96.00 lbs. ( 43.64 kg) Shipping Weight 125.00 lbs. ( 56.82 kg) Shipping Height 10.00 inches (254 mm) Shipping Width 24.50 inches (622 mm) Shipping Depth 38.60 inches (980 mm) Color Black Units per Pallet 8.00 Environmental Operating Environment 32 - 104 °F (0 - 40 °C) Operating Relative Humidity 0 - 95% Operating Elevation 0-10000 feet (0-3000 meters) Storage Temperature 5 - 113 °F (-15 - 45 °C) Storage Relative Humidity 0 - 95% Storage Elevation 0-50000 feet (0-15000 meters) Audible noise at 1 meter from surface of unit 47 dBA Online Thermal Dissipation 400 BTU/hr Conformance Regulatory Approvals C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE Standard Warranty 2 years repair or replace,optional on-site warranties available,optional extended warranties available
