APC SYMMETRA 12KVA TO 16KVA N+1 RACK-MOUNT BUNDLE /POWER& BTRY NS

Forsiden APC SYMMETRA 12KVA TO 16KVA N+1 RACK-MOUNT BUNDLE /POWER& BTRY NS

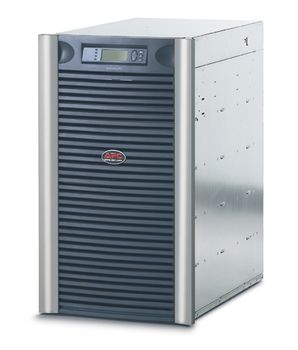

APC SYMMETRA 12KVA TO 16KVA N+1 RACK-MOUNT BUNDLE /POWER& BTRY NS (SYA12K16RMI)

APC SYMMETRA 12KVA TO 16KVA N+1 RACK-MOUNT BUNDLE /POWER& BTRY NS

Varenr.:
SYA12K16RMI
EAN:
3606485318752
  • Kapasitet 12kVA
  • Produkt Rackmonterte UPS
279 958,-
223 966,40 ekskl. mva
Hovedlager Bestillingsvare Butikk Sarpsborg Bestillingsvare Butikk Sørlandssenteret Bestillingsvare Butikk Kristiansand Bestillingsvare Leverandør Forventet leveringsdato 21.12.2022
Beskrivelse

APC Symmetra LX 12kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

SYA12K16RMI

APC Symmetra LX, 12000VA/8400W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model, Rack Height 19 U
Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card

Output

Output Power Capacity
8400 Watts / 12000 VA
Max Configurable Power
11200 Watts / 16000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
90%
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 63 Hz
Crest Factor
up to 5 : 1
Waveform Type
Sine wave
Output Connections
(1) Hard Wire 3-wire (H N + G)
(8) IEC 320 C13
(10) IEC 320 C19

Input

Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V,400V 3PH
Input Frequency
45 - 65 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations
155 - 276,290 - 480 (3:1)V
Other Input Voltages
220V,240V,380V,415V

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
3
Available Battery Slots
1
Typical recharge time
3 hour(s)
Typical Backup Time
at Half Load
20.2 minutes (4200 Watts)
Typical Backup Time
at Full Load
7.5 minutes (8400 Watts)
Runtime Chart
Symmetra LX
Extended Run Options
APC Symmetra LX 12kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

Communications & Management

Interface Port(s)
DB-9 RS-232,Smart-Slot
Available SmartSlot™ Interface Quantity
1
Pre-Installed SmartSlot™ Cards
AP9619
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes

Physical

Maximum Height
33.00 inches (838 mm)
Maximum Width
18.60 inches (472 mm)
Maximum depth
27.10 inches (688 mm)
Rack Height
19U
Net Weight
534.00 lbs. (242.73 kg)
Shipping Weight
638.00 lbs. (290.00 kg)
Shipping Height
41.50 inches (1054 mm)
Shipping Width
23.60 inches (599 mm)
Shipping Depth
39.25 inches (997 mm)
Color
Black,Silver
Units per Pallet
1.00

Environmental

Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 feet (0-4500 meters)
Audible noise at 1 meter from surface of unit
62 dBA
Online Thermal Dissipation
3707 BTU/hr

Conformance

Regulatory Approvals
C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE
Standard Warranty
2 years repair or replace

Selv om vi gjør vårt beste for å gi relevant informasjon, så er bildene kun for å gi et generelt inntrykk, og selve varen er ikke nødvendigvis akkurat slik som avbildet. Dersom det er forskjeller mellom produktoverskrift, beskrivelse og bilde, så er det produktoverskriften som gjelder (f.eks. PCer kommer ikke nødvendigvis med skjerm selv om bildet viser det). Hvis noe er uklart, vennligst send epost til kundestøtte før du bestiller. Vi tar forbehold om trykkfeil og endring av priser og spesifikasjoner uten varsel.
