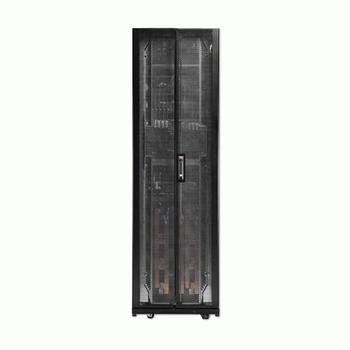

APC Symmetra PX All-In-One 48kW Scalable to 48kW, 400V Hot-scalable power, runtime & distribution in a high-density single frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48kW/48kVA. Suitable for small & medium data center applications. Includes: Network Management Card, Start-Up Service General Bypass Connection 5 wire (3PH + N + G) Bypass Voltage Tolerance +/-10% settable from +/-4/6/8 and 10% Max Bypass Input Current 80A Bypass Protection Device 80A Output Output Power Capacity 48 kW / 48 kVA Max Configurable Power 48 kW / 48 kVA Nominal Output Voltage 230V,400V 3PH Output Voltage Note Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage Efficiency at Full Load 95% Output Voltage Distortion Less than 2% Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Crest Factor Unlimited Waveform Type Sine wave Output Connections (1) Hard Wire 5-wire (3PH + N + G) Output Voltage Tolerance +/-1% static and +/- 5% at 100% load step Output Voltage THD < 2% for 0 to 100% linear load and < 6% for full n Overload Operation 10 minutes @ 125% and 60 seconds @ 150% Efficiency at Half Load 95% Required Output Current Protection 100A Bypass Built-in Static Bypass Input Nominal Input Voltage 400V 3PH Input Frequency 40 - 70 Hz Input Connections Hard Wire 5-wire (3PH + N + G) Input voltage range for main operations 340 - 477V Other Input Voltages 380,400,415 Maximum Input Current 98A Input Breaker Capacity 100.0 A Input Total Harmonic Distortion Less than 5% for full load Type of Input Protection Required gL fuse Batteries & Runtime Battery Type VRLA Included Battery Modules 4 Typical recharge time 3 hour(s) RBC™ Quantity 4 Nominal Battery Voltage +/-192 V (split battery referenced to neutral) End of Discharge Battery Voltage +/-154 V DC Overcurrent Protection 1008A Maximum Available Short Circuit Current 4 kA Efficiency in Battery Operation 94% End of Discharge Maximum Battery Current 165 Overload Operation 10 minutes @ 125% and 60 seconds @ 150% Extended Run Options APC Symmetra PX All-In-One 48kW Scalable to 48kW, 400V Communications & Management Interface Port(s) SmartSlot Available SmartSlot™ Interface Quantity 2 Control panel Multi-function LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Emergency Power Off (EPO) Yes Physical Maximum Height 1991.00 mm Maximum Width 600.00 mm Maximum Depth 1070.00 mm Rack Height 42U Net Weight 796.00 KG Shipping Weight 858.00 KG Shipping Height 2140.00 mm Shipping Width 848.00 mm Shipping Depth 1210.00 mm Color Black Environmental Operating Environment 0 - 40 °C Operating Relative Humidity 0 - 95% Operating Elevation 0-999.9 meters Storage Temperature -15 - 40 °C Storage Relative Humidity 0 - 95% Storage Elevation 0-15000 meters Audible noise at 1 meter from surface of unit 61.00 dBA Online Thermal Dissipation 7719.00 BTU/hr Protection Class NEMA 1 Conformance Regulatory Approvals EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 Standard Warranty 1 year on-site repair or replace with factory authorized Start-Up
