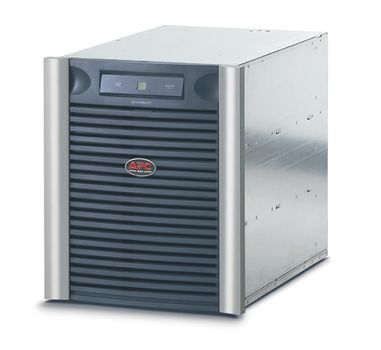

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V SYA8K8RMI APC Symmetra LX, 8000VA/5600W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model, Rack Height 13 U Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card Output Output Power Capacity 5600 Watts / 8000 VA Max Configurable Power 5600 Watts / 8000 VA Nominal Output Voltage 230V Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Efficiency at Full Load 90% Output Voltage Distortion Less than 5% at full load Output Frequency (sync to mains) 47 - 63 Hz Crest Factor up to 5 : 1 Waveform Type Sine wave Output Connections (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19 Input Bypass Internal Bypass (Automatic and Manual) Nominal Input Voltage 230V,400V 3PH Input Frequency 45 - 65 Hz (auto sensing) Input Connections Hard Wire 3 wire (1PH+N+G) Input voltage range for main operations 155 - 276,290 - 480 (3:1)V Other Input Voltages 220V,240V,380V,415V Batteries & Runtime Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules 2 Typical recharge time 3 hour(s) Typical Backup Timeat Half Load 20.2 minutes (2800 Watts) Typical Backup Timeat Full Load 7.5 minutes (5600 Watts) Runtime Chart Symmetra LX Extended Run Options APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V Communications & Management Interface Port(s) DB-9 RS-232,Smart-Slot Available SmartSlot™ Interface Quantity 1 Pre-Installed SmartSlot™ Cards AP9619 Control panel Multi-function LCD status and control console Audible Alarm Audible and visible alarms prioritized by severity Emergency Power Off (EPO) Yes Physical Maximum Height 22.50 inches (572 mm) Maximum Width 18.60 inches (472 mm) Maximum depth 27.10 inches (688 mm) Rack Height 13U Net Weight 392.00 lbs. (178.18 kg) Shipping Weight 477.00 lbs. (216.82 kg) Shipping Height 31.00 inches (787 mm) Shipping Width 23.60 inches (599 mm) Shipping Depth 39.25 inches (997 mm) Color Black,Silver Units per Pallet 1.00 Environmental Operating Environment 32 - 104 °F (0 - 40 °C) Operating Relative Humidity 0 - 95% Operating Elevation 0-10000 feet (0-3000 meters) Storage Temperature 5 - 113 °F (-15 - 45 °C) Storage Relative Humidity 0 - 95% Storage Elevation 0-15000 feet (0-4500 meters) Audible noise at 1 meter from surface of unit 62 dBA Online Thermal Dissipation 2762 BTU/hr Conformance Regulatory Approvals C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE Standard Warranty 2 years repair or replace
