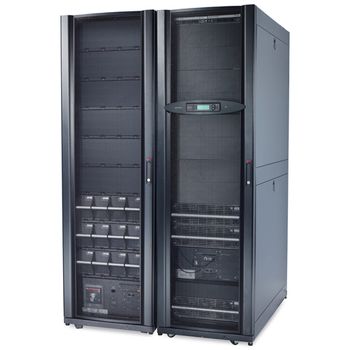

Symmetra PX 32kW Scalable to 96kW, 400 V
Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications.
Includes: Network Management Card, Start-Up Service, User Manual
General
Bypass Connection
5 wire (3PH + N + G)
Max Bypass Input Current
250A
Bypass Protection Device
250A
Output
Output Power Capacity
32 kW / 32 kVA
Max Configurable Power
160 kW / 160 kVA
Nominal Output Voltage
230V,400V 3PH
Output Voltage Note
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Efficiency at Full Load
95%
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Output Connections
| (1) Hard Wire 5-wire (3PH + N + G) |
|
Output Voltage THD
< 2% for 0 to 100% linear load and < 6% for full n
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Efficiency at Half Load
95%
Required Output Current Protection
160A
Neutral Output Current
80A
Bypass
Built-in Static Bypass
Input
Nominal Input Voltage
400V 3PH
Input Frequency
40 - 70 Hz
Input Connections
| Hard Wire 5-wire (3PH + N + G) |
|
Input voltage range for main operations
340 - 477V
Maximum Input Current
66A
Input Breaker Capacity
200.0 A
Input Total Harmonic Distortion
Less than 5% for full load
Batteries & Runtime
Battery Type VRLA
Included Battery Modules 3
Available Battery Slots 6
Typical recharge time 3.50 hour(s)
RBC™ Quantity 4
Nominal Battery Voltage +/-192 V (split battery referenced to neutral)
End of Discharge Battery Voltage +/-154 V
DC Overcurrent Protection 189A
Maximum Available Short Circuit Current 2 kA
Efficiency in Battery Operation 94%
End of Discharge Maximum Battery Current 111
Overload Operation 10 minutes @ 125% and 60 seconds @ 150%
Communications & Management
Interface Port(s)
SmartSlot
Available SmartSlot™ Interface Quantity
2
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
1991.00 mm
Shipping Weight
1124.00 KG
Shipping Height
2140.00 mm
Shipping Width
1696.00 mm
Shipping Depth
1210.00 mm
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-999.9 meters
Storage Temperature
-15 - 40 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
63.00 dBA
Online Thermal Dissipation
5748.00 BTU/hr
Conformance
Regulatory Approvals
CE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111
Standard Warranty
1 year on-site repair or replace with factory authorized Start-Up
